Professional DJ Audio Mixer - 16 Channel Digital 99 Reverb Effect | Sound Board Desk System Interface

Depusheng PA16 Professional Audio Mixer Sound Board Console Desk System Interface 16 Channel Digital Built-in 99 Reverb Effect

Product Introduction：

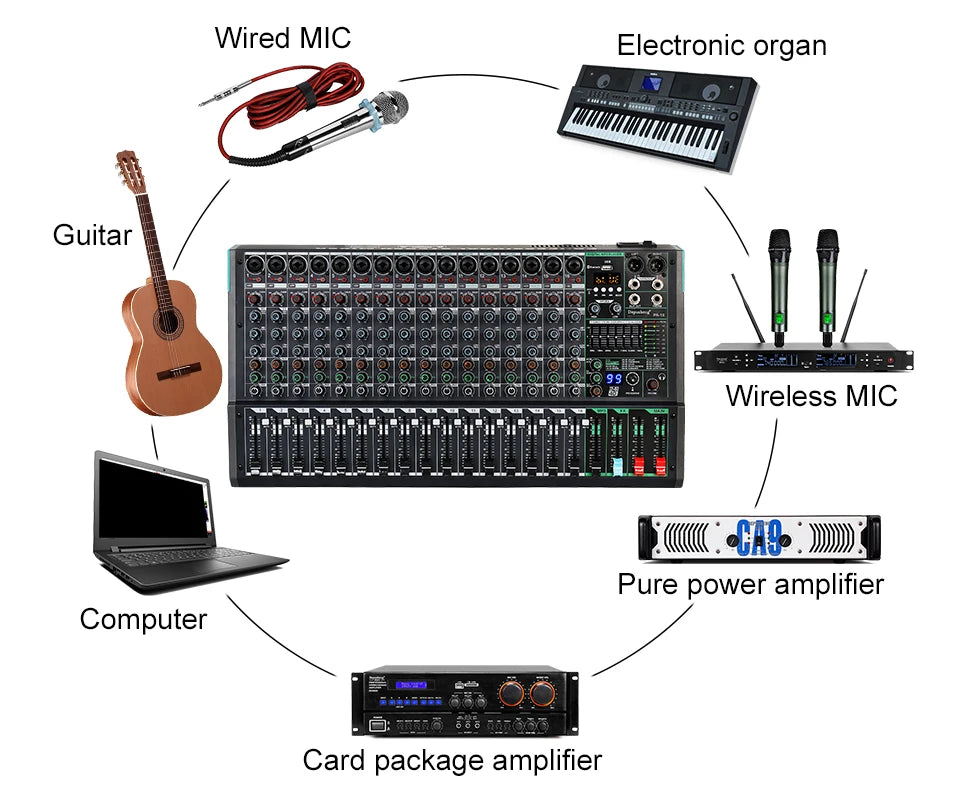

• Multi-channel selection, practical and multi-functional, suitable for KTV private rooms, recording studios, broadcasting rooms, conference projects, professional stage performances, live broadcasts, wedding performances and other occasions.




• Multi-channel mono, three-band EQ allows you to easily control the entire scene.




• With Bluetooth function, the connection is simple and fast, and the mixer can play music when connected.




• The storage devices with USB interface can be connected and used, and the LCD color screen can display clearly and clearly.




• 99 kinds of reverberation effect adjustment can be adjusted at any time according to the needs of the scene, and the required reverberation effect can be adjusted through the reverberation knob.



  NOTE: 1.When USB and Bluetooth are connected, the output is mono audio, and there is no auxiliary output.

  2.The USB interface of the mixer can be connected to the computer interface using a USB to USB cable. It is a two-way interface that can input the sound input from the microphone to the mixer to the computer. It can also transmit the audio from the computer back to our mixer. Use the tape mp3 fader and the volume fader to control the volume.

  3.The mixer is a single-track recording. Only one channel can be recognized on the computer. The sounds output by all channels are mixed into one track on the computer.





  Product parameters
  Input Channels:4/6/8/12/16 Mono inputs
  AUX Channels:1CH
  DSP EFF :99 kinds of DSP EFF
  Phantom power:48V
  Signal Noise Ratio:>93dB
  Total Harmonic Distortion:0.03%
  Line input：
  Gain Zone:10dB to +40dB
  MAX Output Level:18 dBu
  Input sensitivity
  MIC Input:50dB
  LINE Input:30dB
  EQUALIZER
  HIGH:12kHz/±15dB
  MID:1kHz/±15dB
  LOW:80Hz/±15dB
  Frequency response:20HZ-20kHZ (+3dB)
  Max output level:0dBu
  Auxiliary max output level:15dBu(1kw,THD=0.5%）
  Earphone Max output level:15dBu/150Ω（+25dBm）
  Power dissipation:16W
  Power supply:100 – 240V 6A 250V



  Product List:

  1 x Mixing Audio Console

  1x Audio Line

  1 x User Manual(English)
